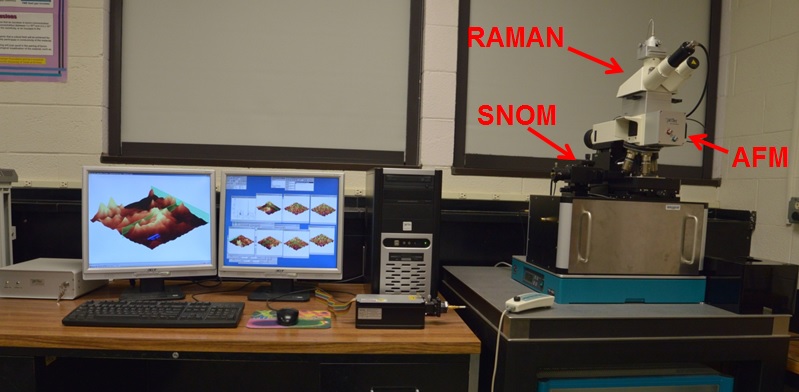

WITec alpha 300R confocal Raman/ AFM/ SNOM modular system
Particularly designed for high-speed and high-resolution confocal Raman measurements, this modular system also allows simultaneous recording of AFM and SNOM data.
Link to brochure: http://www.witec.de/products/raman/alpha300-ras-combined-raman-afm-snom
Principal specifications of the WITec system:
Confocal Raman Microscope
- Ultrafast acquisition time (i.e., for a single Raman spectrum this can be as low as 760 microseconds)
- Unsurpassed Raman sensitivity (spectral resolution of 0.02 wavenumbers)
- Automatic measurements without sample removal (piezo-driven scan platform for continuous scans with maximum travel range 100 m x 100 m in x- and y- directions and 20 µm in z-direction
- 3D imaging and depth profiling due to confocal configuration
- Optical resolution diffraction limited to 250 nm laterally and 500 nm vertically
- Scan resolution – position accuracy < 4 nm in x- and y- directions and < 1nm in z-direction; linearity better than 0.03%
Atomic Force Microscope
Operating mode: - Contact Mode/Lateral Force
Pulse Force Mode
AC-Mode/Phase Imaging
Magnetic Force Mode
Dynamic position control

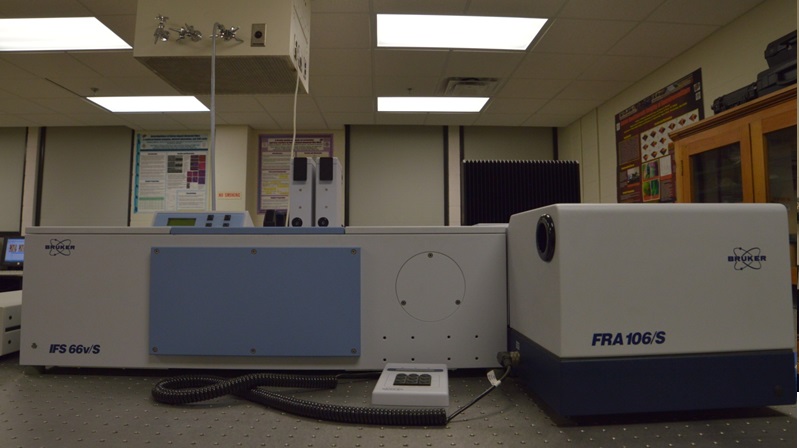

Bruker IFS 66v/S vacuum – based FT-IR / FRA 106S FT-Raman modular system
Bruker IFS 66v/S FT-IR system has the capability of a vacuum environment which provides outstanding sensitivity and stability, especially for measurements in the FIR region.
Principal specifications of the Bruker IFS 66v/S FT-IR system:
- Full spectral range coverage from the very far infrared ( >20 cm-1 ) up to the vacuum UV ( >55,000 cm-1 )
- High spectral resolving power and spectral resolution of better than 0.1 cm-1
- Outstanding signal-to-noise and peak-to-peak noise
Link to IFS 66vS brochure: http://www.speciation.net/Database/Instruments/Bruker-Optics/IFS-66vS-Vacuum-FTIR-;i650
Link to FRA 106 S FT-Raman brochure: http://www.kromtek.com.my/product/Spectroscopy/Raman/FRA106/FRA106.htm
Scanning Probe Microscope CP-II manufactured by Veeco Inc.

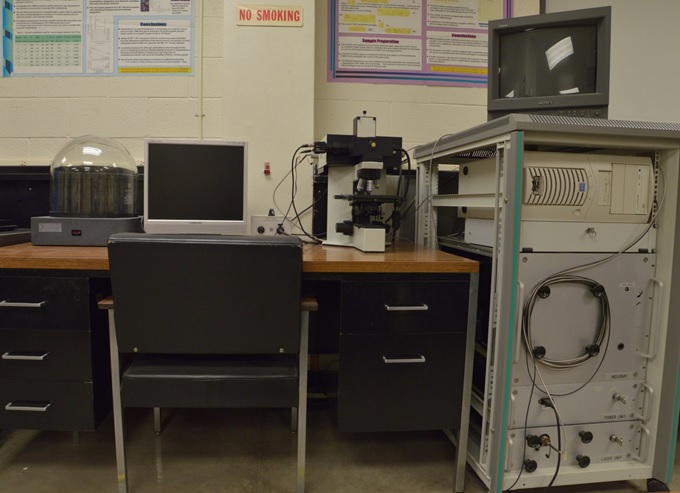

InduRam Horiba Jobin-Yvon microprobe Raman system
In addition to these main systems different other small systems and accessories for measurements are available, as follows:
- Coherent Innova tunable Ar laser
- Janis flow-cryostat
- Pike Technology cryostat windows for different optical ranges
- Janis liquid He transfer line
- Lake-Shore temperature controller
- Electronic balance from Denver Instruments Inc.
- Corning PC420D hot plate
- Bronson 1800 ultrasound bath
